American Range AR-4 Gas Range
The American Range AR-4 is an excellent solution for kitchens with limited space or businesses that handle small to medium volumes of baking and roasting. Equipped with four open burners and durable sectioned cast iron grates, this range delivers high heat retention and even distribution, outperforming stainless steel alternatives. Despite its compact design, the oven is spacious enough to fit a full-size sheet pan, making it perfect for high-efficiency cooking.
Built with heavy-gauge stainless steel, this four-burner gas range is designed for durability. Its reinforced welded front frame adds extra strength, ensuring long-term resistance to rust, dents, and warping. The removable stainless steel oven door and split iron grates make cleaning and maintenance effortless. Additionally, the included chrome-plated oven rack helps prevent food from sticking while resisting corrosion.
Key Features:

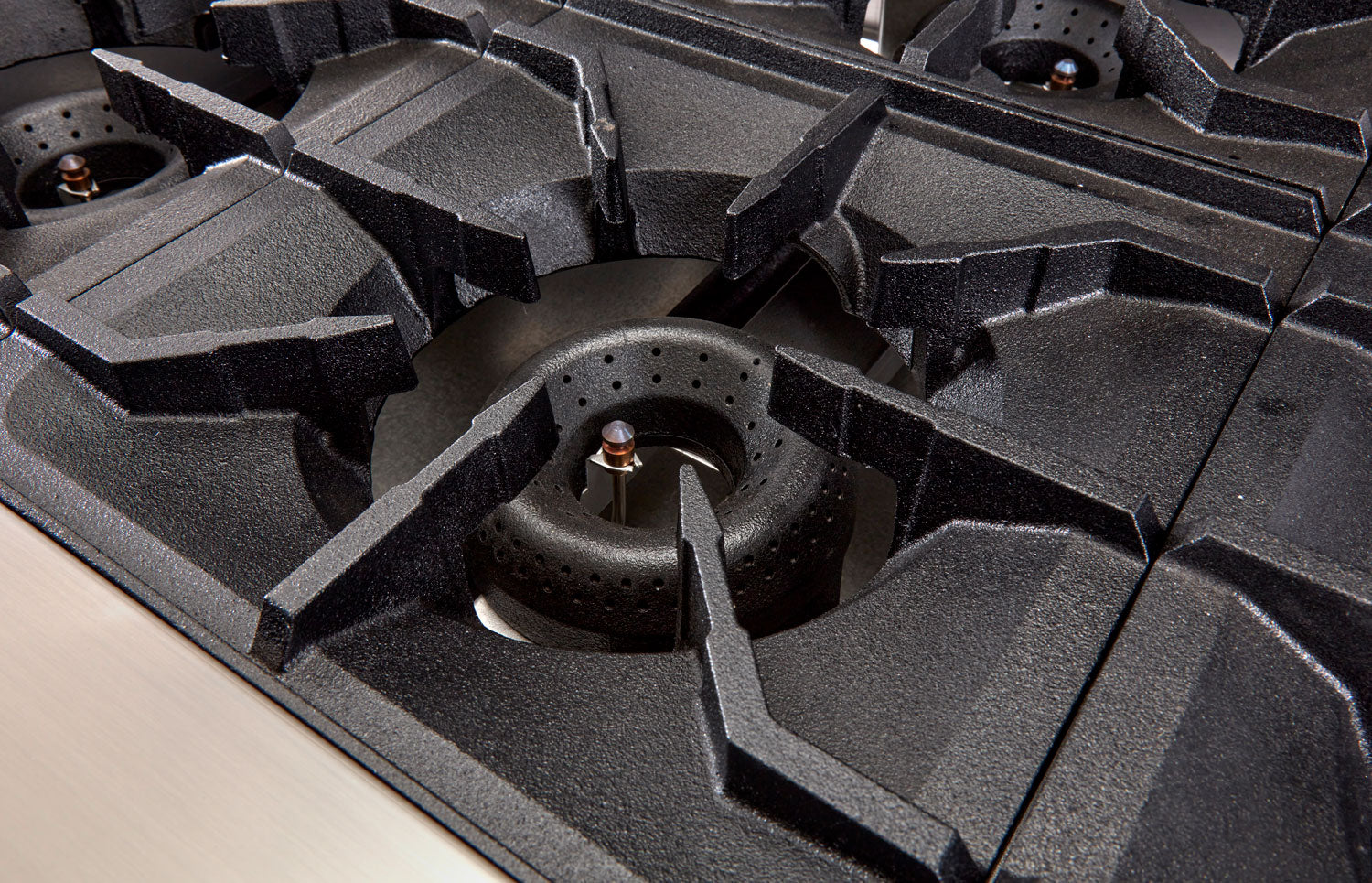

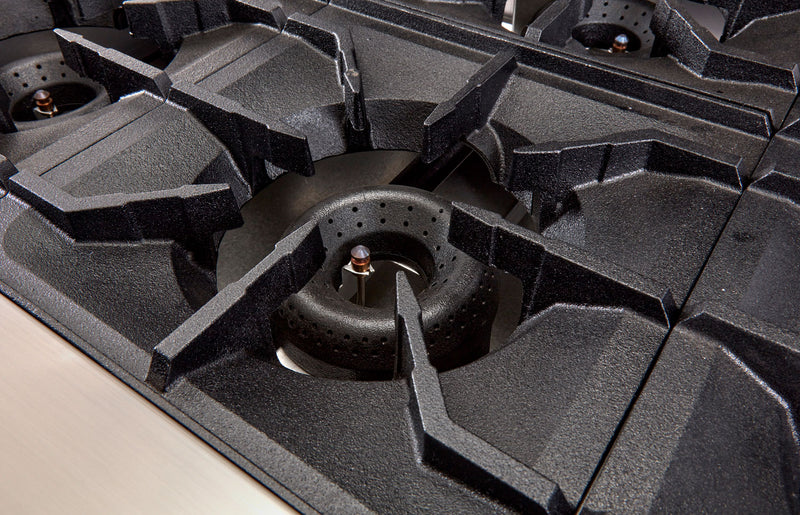

Heavy-Duty Grates: 12" x 12" sectioned cast iron grates provide superior heat distribution.

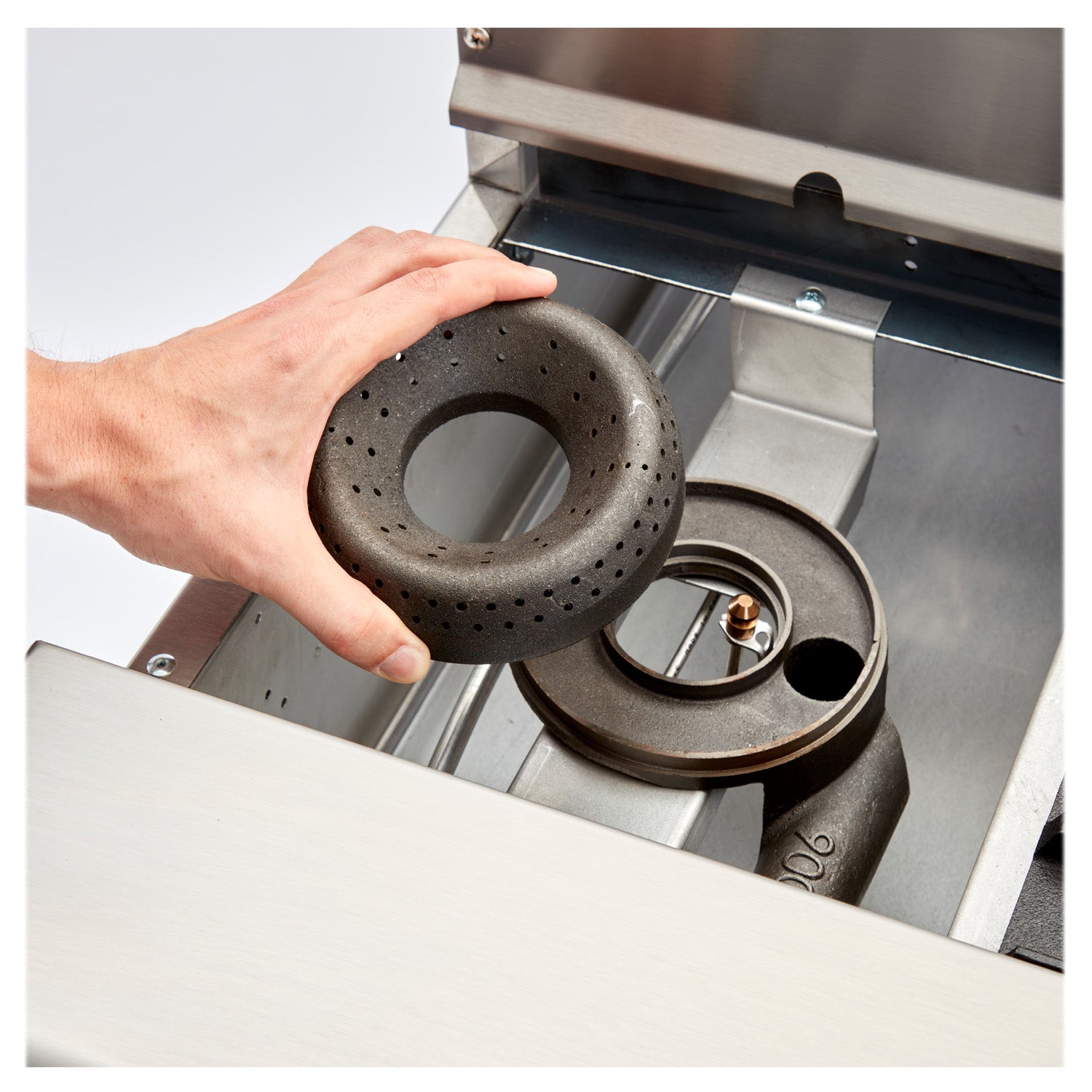

High-Performance Burners: Four removable lift-off open burners, each generating 32,000 BTU/hr.
Spacious Cooktop: 24” width accommodates multiple pots and pans for efficient cooking.
Precision Temperature Control: Thermostatic regulation for both the cooktop and oven.
Versatile Oven Functionality: Temperature range from 150°F to 500°F, with a porcelain-finished interior for easy cleaning.
Safety Features: 100% safety oven pilot and gas shut-off for reliable operation.
Durable Stainless Steel Build: Front, sides, riser, and high shelf are designed for high-volume use.
Convenient Ignition: Matchless push-button ignition reduces burn risks, while standing pilot lights ensure quick burner activation.
Sturdy Support: Four 6" chrome-plated steel legs provide stability and corrosion resistance.
Specifications:
Oven Interior Dimensions: 20” W x 26.5” D x 13.5” H
Overall Dimensions: 24” W x 28.5” D x 56” H
Total BTU Output: 155,000 BTU
Gas Type: Natural gas
Gas Connection: ¾” NPT
Power: 46 kW
Manufacturer Details:
Model: American Range AR-4
Type: Gas Restaurant Range, 24”
Burners: (4) 32,000 BTU open burners
Oven: (1) 20” space-saver oven with (2) chrome-plated racks
Construction: Stainless steel front, sides, high shelf, and riser
Legs: 6” adjustable chrome-plated steel legs
Certifications: ETL-Sanitation
Made in the USA
This professional-grade gas range is built to handle the demands of busy kitchens while maximizing efficiency and performance. Get yours today and experience the reliability of American Range equipment!
